Sage Cheshire Aerospace Case Study on NASA AMES Nose Cone


Click Image to Enlarge



J-31 Nose Cone - NASA™ Ames Research Center


A high-density foam master was created for a master tool from which we made a two-part mold for the main nose cone. The cutout required a second tool that was CNC machined in three setups due to its complex form. Our composites experts’ utilized pre-preg laminates to fabricate several pieces that were then assembled for the rotating nose cone assembly for this Jetstream J-31 aircraft.

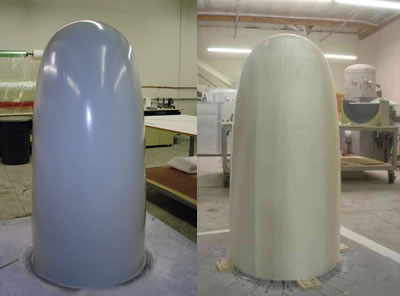

Final Composite Part




High-Temp. Toolling / Pre-Preg. Fiberglass Lay-Up

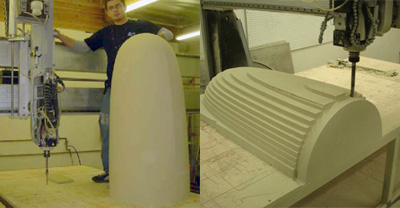

CNC Machining high density urethane foam for high temperature male tooling plug.
