A3 Tail Cone - Raytheon™

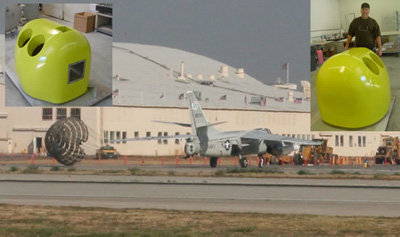

A3 avionics tail cone with cooling ducts for electrical package.

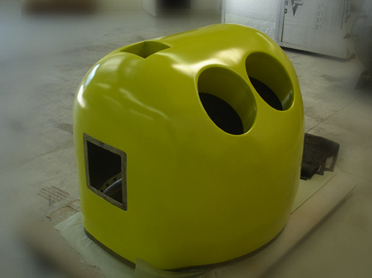

This tail cone was laminated over a one off male plug. The cooling ports were laminated in a separate CNC tool and structurally bonded into the laminate with a vacuum bag process. Parts were finished off using an epoxy primer.
